- 80 L Smart Liquid Tank High-capacity RevoSpray 5 system delivers up to 32 L/min flow rate (upgradeable to 46 L/min with four-nozzle kit) across a 5–10 m effective spray width.
- RTK Precision Positioning Bundled XRTK7 mobile RTK station enables ±10 cm horizontal and vertical positioning accuracy for repeatable field coverage and consistent swath alignment.
- Modular Multi-Mission Platform P150 Max supports spraying, granular spreading (up to 300 kg/min with RevoCast 5), field mapping, and sling-load transport through swappable payload modules.
- Scalable Starter Power Stack Includes 2× B141050 Smart SuperCharge batteries, 2× CM13600S chargers, 6kW parallel charging kit, and battery cooling tower for operational battery rotation.
- 4D Imaging Radar Obstacle Detection Onboard radar detects obstacles 1.5–100 m ahead, supporting safe autonomous operation across varied terrain including orchards and irregular field boundaries.
- 80 kg Maximum Payload Heavy-lift airframe with four 4850 W motors supports 80 kg payload capacity for large liquid tanks or granular hoppers, maximizing time between refills.
الوصف

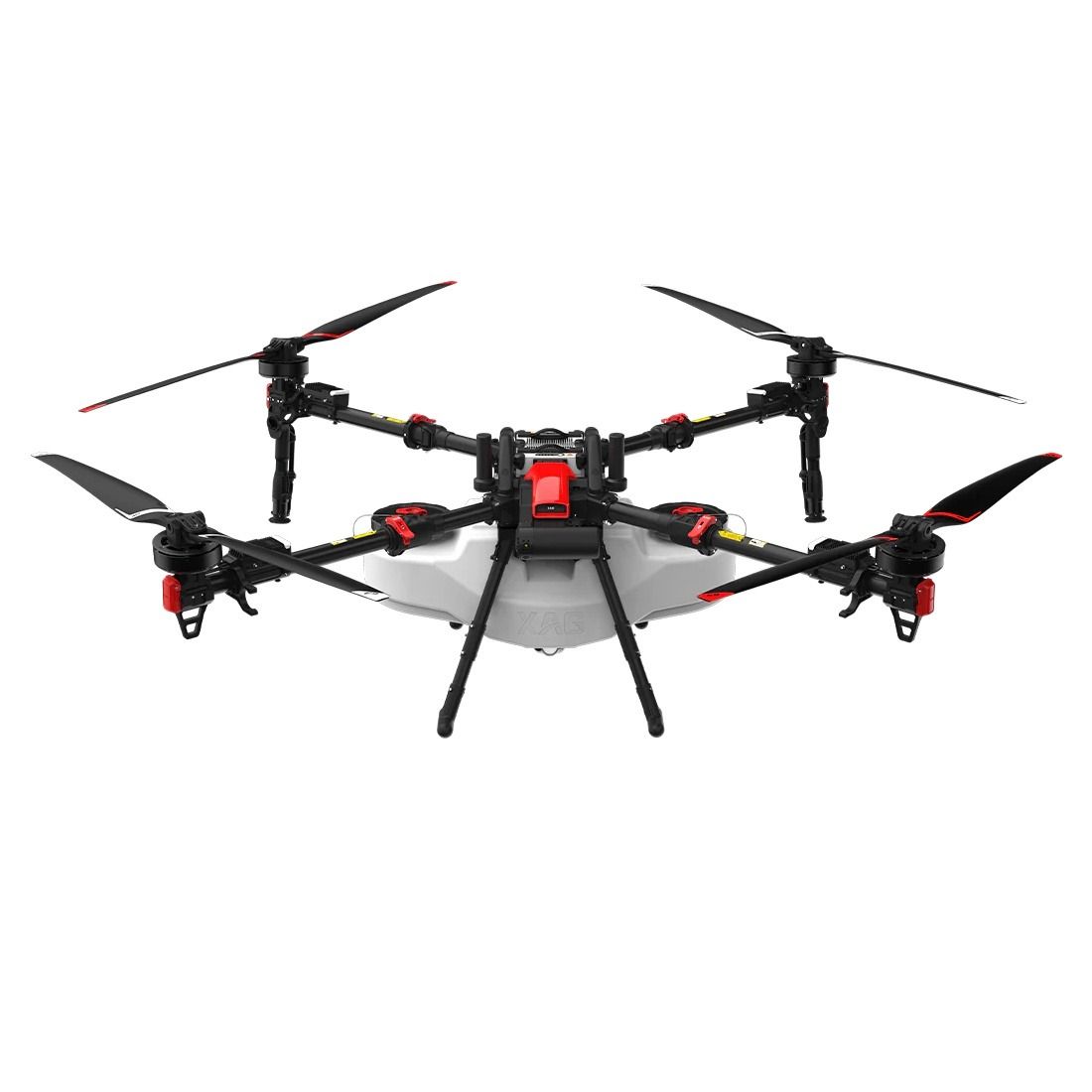

The XAG P150 Max Starter 7KW 2B2C Kit is designed as a complete entry point into the P150 Max ecosystem, pairing XAG's flagship heavy-lift agricultural drone with the RevoSpray 5 spraying system and an operational power stack sized for sustained field work. The P150 Max supports an 80-liter smart liquid tank, delivering up to 32 L/min flow rate across a 5–10 m effective spray width, with droplet size adjustable across a 60–500 μm range for different crop and canopy conditions. Beyond spraying, the platform is engineered for granular spreading, field mapping, and sling-load transport missions, making it a versatile asset across crop protection and input distribution workflows.
The Starter kit bundles the P150 Max with RevoSpray 5, an SRC5 smart remote controller, two B141050 Smart SuperCharge batteries, two CM13600S chargers, a 6kW parallel charging kit, a battery cooling tower, and an XRTK7 mobile RTK station. The XRTK7 enables centimeter-precision field geometry and repeatable coverage patterns. Rated at 80 kg maximum payload and designed with a foldable transport-oriented airframe, the P150 Max is built for professional operators who need a scalable platform ready for immediate deployment and future expansion.
الميزات
المواصفات
| Brand | XAG |
|---|---|
| Model | P150 Max Starter 7KW 2B2C Kit |
| Max Payload Capacity | 80 kg |
| Tank Capacity | 80 L (smart liquid tank) |
| Max Flow Rate (standard) | 32 L/min |
| Max Flow Rate (4-nozzle upgrade) | 46 L/min |
| Effective Spray Width | 5–10 m |
| Droplet Size Range | 60–500 μm |
| Motor Count / Rated Power | 4 × 4850 W |
| Battery Included | 2× B141050 Smart SuperCharge (20,000 mAh) |
| Chargers Included | 2× CM13600S |
| Charging Kit | 6kW parallel charging kit |
| RTK Station | XRTK7 mobile station |
| Remote Controller | SRC5 smart remote controller |
الصناعات
الأسئلة الشائعة
It is a complete agricultural drone kit designed for autonomous crop spraying, with an 80 L smart liquid tank and RevoSpray 5 system delivering up to 32 L/min across a 5–10 m spray width. The P150 Max platform also supports granular spreading, field mapping, and sling-load transport through swappable modules.
The P150 Max combines an 80 kg payload capacity, 80 L smart liquid tank, up to 32 L/min flow rate (upgradeable to 46 L/min), and 4D imaging radar obstacle detection with RTK positioning accurate to ±10 cm, enabling consistent autonomous coverage across large fields, orchards, and uneven terrain.
The P150 Max Starter Kit is suited for commercial agriculture operations including large-scale crop protection spraying, orchard and specialty crop treatment, granular fertilizer or seed distribution, and field mapping for variable-rate prescription workflows.
Yes, Robotix Market ships the XAG P150 Max Starter 7KW 2B2C Kit to customers worldwide. The product is covered by the manufacturer's warranty; please contact us for warranty terms applicable in your region.
Contact Robotix Market through our website or request a quote directly — our team will provide pricing, availability, configuration advice, and shipping details for the XAG P150 Max Starter 7KW 2B2C Kit.
XAG P150 Max Agricultural Drone Starter 7KW 2B2C Kit
- السعر العادي
- 110,168.00 SR
