- 1,400 kg payload reach truck Autonomously handles full industrial pallet loads up to 1,400 kg in high-bay racking environments, replacing manned reach truck operations on structured routes.
- Slim robot body for narrow aisles SEER's "Flexible Reach, Slim Robot Body" design allows operation in aisle widths that conventional reach trucks cannot efficiently navigate.
- Up to 10 hours runtime 24 V / 210 Ah battery delivers up to 10 hours of continuous operation, supporting multi-shift warehouse and distribution center workflows.
- ±10 mm positioning accuracy Laser SLAM navigation achieves ±10 mm accuracy at rack faces and docking stations, enabling reliable autonomous load placement and retrieval.
- SEER fleet management integration Operates within SEER Robotics' fleet coordination platform for multi-robot routing, traffic control, task dispatch, and charging cycle management.
الوصف
The SEER Robotics SSR-1400 SlimReach 1400 is an autonomous reach truck engineered for high-bay warehouse and logistics environments where a slim robot body and flexible reach capability are priorities. With a 1,400 kg maximum payload and a top speed of 1.5 m/s, it is designed to handle pallet loads across racking systems autonomously, eliminating the need for manned reach truck operators on repetitive routes. SEER's positioning—"Flexible Reach, Slim Robot Body"—highlights the design intent: a narrower profile that can navigate aisle widths unsuitable for conventional reach trucks while still delivering industrial lifting performance. Up to 10 hours of runtime from the 24 V / 210 Ah battery supports multi-shift operations with minimal charging interruptions.
The SSR-1400 achieves ±10 mm positioning accuracy and integrates into SEER's complete AMR fleet ecosystem, including robot control, SLAM-based navigation, fleet coordination, and WMS connectivity. At 2,060 kg and measuring 2,140 × 1,200 × 2,230 mm, it is a full-scale industrial vehicle suited to warehouses, distribution centers, and manufacturing facilities operating structured racking environments. Deployment suitability depends on floor flatness, aisle layout, rack type, and integration with upstream management systems.
الميزات
المواصفات
| Brand | SEER Robotics |
|---|---|
| Model | SSR-1400 |
| Category | Autonomous Reach Truck |
| Maximum Payload | 1,400 kg |
| Maximum Speed | 1.5 m/s |
| Runtime | Up to 10 hours |
| Battery Voltage | 24 V |
| Battery Capacity | 210 Ah |
| Positioning Accuracy | ±10 mm (±0.39 in) |
| Length | 2,140 mm |
| Depth | 1,200 mm |
| Height | 2,230 mm |
| Weight | 2,060 kg |
الصناعات
الأسئلة الشائعة
The SSR-1400 is an autonomous reach truck that replaces manned reach truck operators on structured routes in high-bay warehouses and distribution centers, autonomously placing and retrieving pallets in racking systems.
The SSR-1400 handles up to 1,400 kg at speeds up to 1.5 m/s with ±10 mm positioning accuracy, and delivers up to 10 hours of runtime from its 24 V / 210 Ah battery. It measures 2,140 × 1,200 × 2,230 mm and weighs 2,060 kg.
The SSR-1400 is suited to warehouse automation, industrial logistics, and distribution center operations that use high-bay racking and need to automate repetitive pallet storage and retrieval workflows.
Yes, Robotix Market ships the SEER Robotics SSR-1400 worldwide. The product is covered by the manufacturer's warranty as provided by SEER Robotics.
Pricing is quotation-based. Contact Robotix Market through the website's inquiry or quote form and our team will provide configuration details, compatibility guidance, lead time, and shipping information.

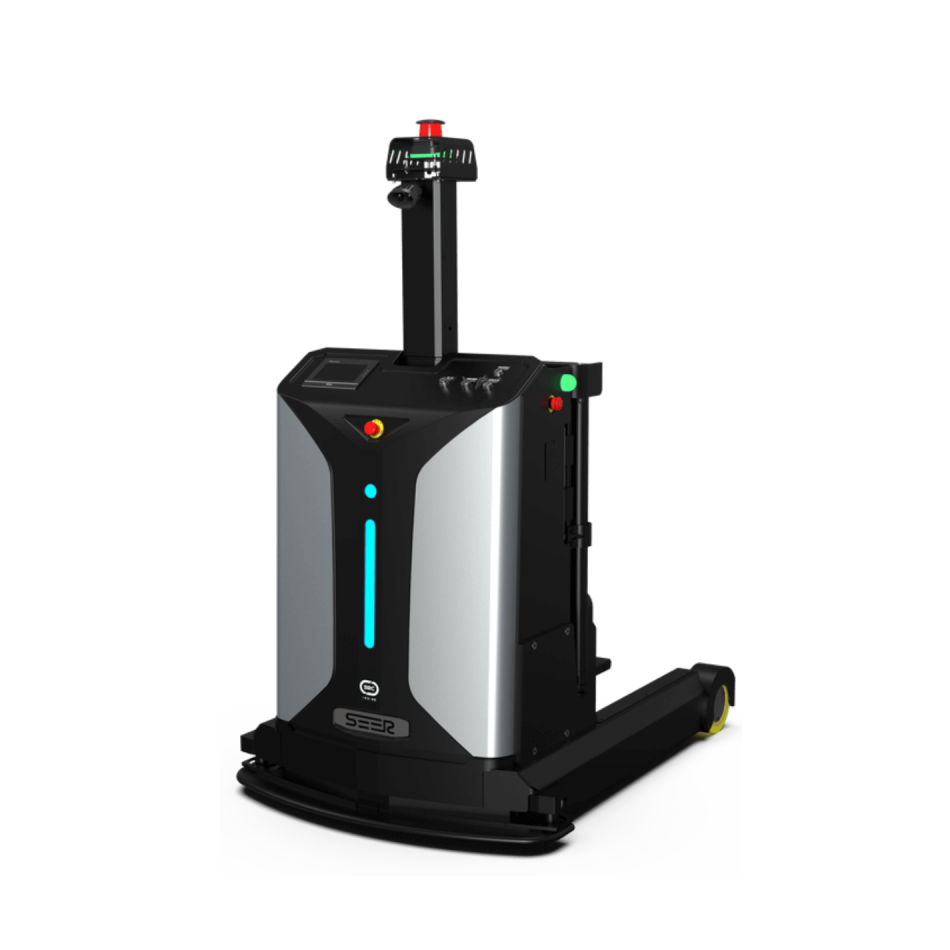

SEER Robotics SSR-1400 SlimReach 1400 Autonomous Reach Truck
