- Integrated mobile manipulator A self-developed autonomous platform and collaborative arm ship as one unit, moving handling, assembly, inspection, and precision processing tasks between workstations.
- SLAM and QR code navigation Hybrid navigation delivers a maximum overall accuracy of ±0.3 mm for repeatable positioning at machines and inspection points.
- 670 kg load on a compact chassis The platform supports loads up to 670 kg within 1250*600*700mm vehicle dimensions, fitting narrow production aisles.
- Safe human-robot collaboration Ground and airspace protection runs in real time so the HC-X2-L can share workspaces safely with personnel.
- Purpose-built wheel system A chassis wheel system designed specifically for mobile collaborative robots provides greater stability and reliability.
- Flexible charging for continuous duty Contact-based, wireless, and automatic charging options cover short-term, real-time, and 24/7 operating schedules.
Açıklama

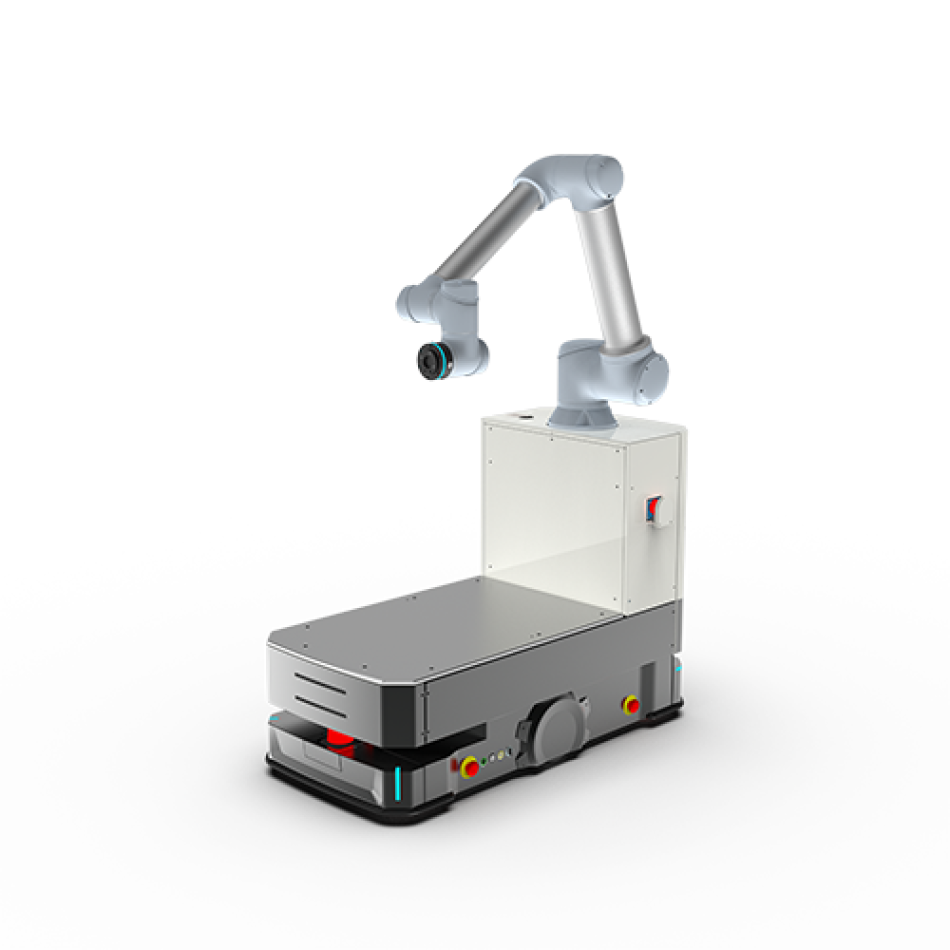

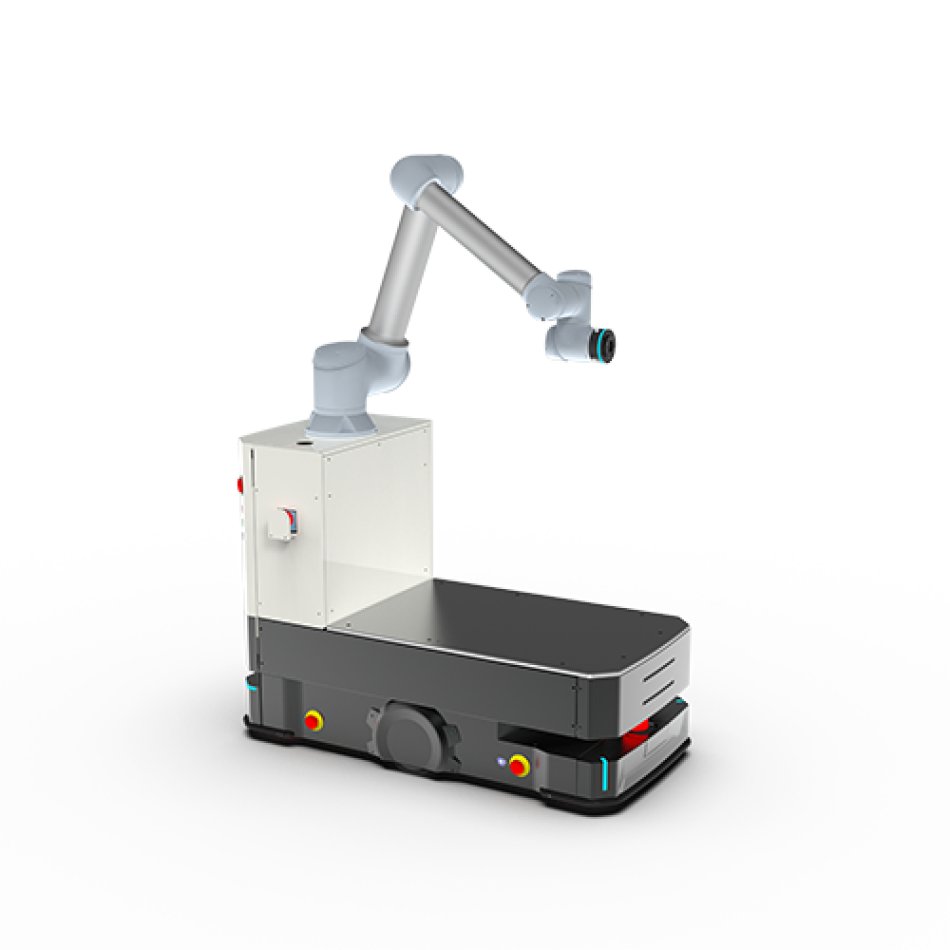

SIASUN's HC-X2-L is a DUCO-series mobile collaborative robot that unites an autonomous mobile platform and a collaborative arm — both developed in-house by SIASUN — in one self-contained unit. Fitted with vision systems, grippers, and other execution units from SIASUN's own portfolio, it takes on material handling, assembly, inspection, and precision processing across a facility instead of being tied to a single fixed cell. Published platform figures include a 670 kg load capacity, ±0.3 mm maximum overall accuracy, and hybrid SLAM plus QR code navigation, with a compact 1250 x 600 x 700 mm footprint that suits narrow production aisles.
Safety systems watch both the ground plane and the airspace around the manipulator in real time, allowing people and the robot to share the same workspace. The purpose-built chassis wheel system was engineered specifically for mobile collaborative duty, prioritising stability and reliability, and a single integrated teaching pendant screen commissions both the platform and the arm — shortening deployment. Three charging modes (contact-based, wireless, and automatic) cover short-term, real-time, and round-the-clock 24/7 operating patterns, and multiple communication and interaction methods let the HC-X2-L connect with existing factory systems for inspection and loading and unloading workflows.
Özellikler
Teknik Özellikler
| Brand | SIASUN |
|---|---|
| Model | HC-X2-L |
| Type | DUCO mobile collaborative robot |
| Platform Load | 670kg |
| Max Overall Accuracy | ±0.3mm |
| Navigation Method | SLAM & QR code |
| Vehicle Dimensions | 1250*600*700mm |
| Charging Options | Contact-based, wireless, and automatic |
| Optional Equipment | Vision systems, grippers, and other execution units |
| Control | Integrated teaching pendant (platform and arm on one screen) |
| Application Area | Inspection, loading and unloading |
Sektörler
Sıkça Sorulan Sorular
The HC-X2-L is a mobile collaborative robot from SIASUN's DUCO family that combines an autonomous mobile platform with a collaborative arm. Equipped with vision systems, grippers, and other execution units, it performs material handling, assembly, inspection, and precision processing across multiple stations in a facility.
It can carry SIASUN's self-developed vision systems, grippers, and other execution units, and it offers multiple interaction and communication methods so it can integrate seamlessly with existing customer systems and workflows.
Both models belong to SIASUN's DUCO HC-X2 mobile collaborative robot family and share the same published platform parameters — 670 kg platform load, ±0.3 mm maximum overall accuracy, SLAM and QR code navigation, and 1250*600*700mm dimensions. The model codes denote different configurations of the HC-X2 platform; contact Robotix Market and we will confirm which build matches your task and tooling requirements.
Yes. Comprehensive safety protection monitors the ground and the airspace around the arm in real time to enable safe human-robot collaboration, and the custom chassis wheel system is designed for stable, reliable movement in shared workspaces.
Pricing is available on request — contact Robotix Market via the quote or inquiry form for pricing, availability, and shipping details. The HC-X2-L is covered by SIASUN's manufacturer warranty, and Robotix Market ships worldwide.
