- Dual-Mode Operation: Point Marking & Positioning Station Operates as a handheld field boundary mapper for precision agriculture mission planning, and as a tripod-mounted portable RTK reference station for positioning workflows.
- Multi-Method High-Precision Positioning Supports Network RTK, PPP satellite-based positioning, and CORS, providing flexible high-accuracy positioning options across varied connectivity environments.
- 4G + XLink Connectivity Integrated 4G LTE module with SIM card slot enables network-based RTK correction links, while XAG's XLink communication handles in-ecosystem relaying and data exchange.
- Lightweight & Portable Field Form Factor At 0.55 kg and 222 × 112 × 75 mm, the XRTK7 is compact enough to carry between sites and quick to deploy, with a 1/4" tripod thread for stable base station setup.
- XAG One App Integration Managed via the XAG One mobile app for device onboarding, mode configuration, firmware updates, and survey workflow execution, keeping the toolchain consistent across the XAG platform.
Descripción

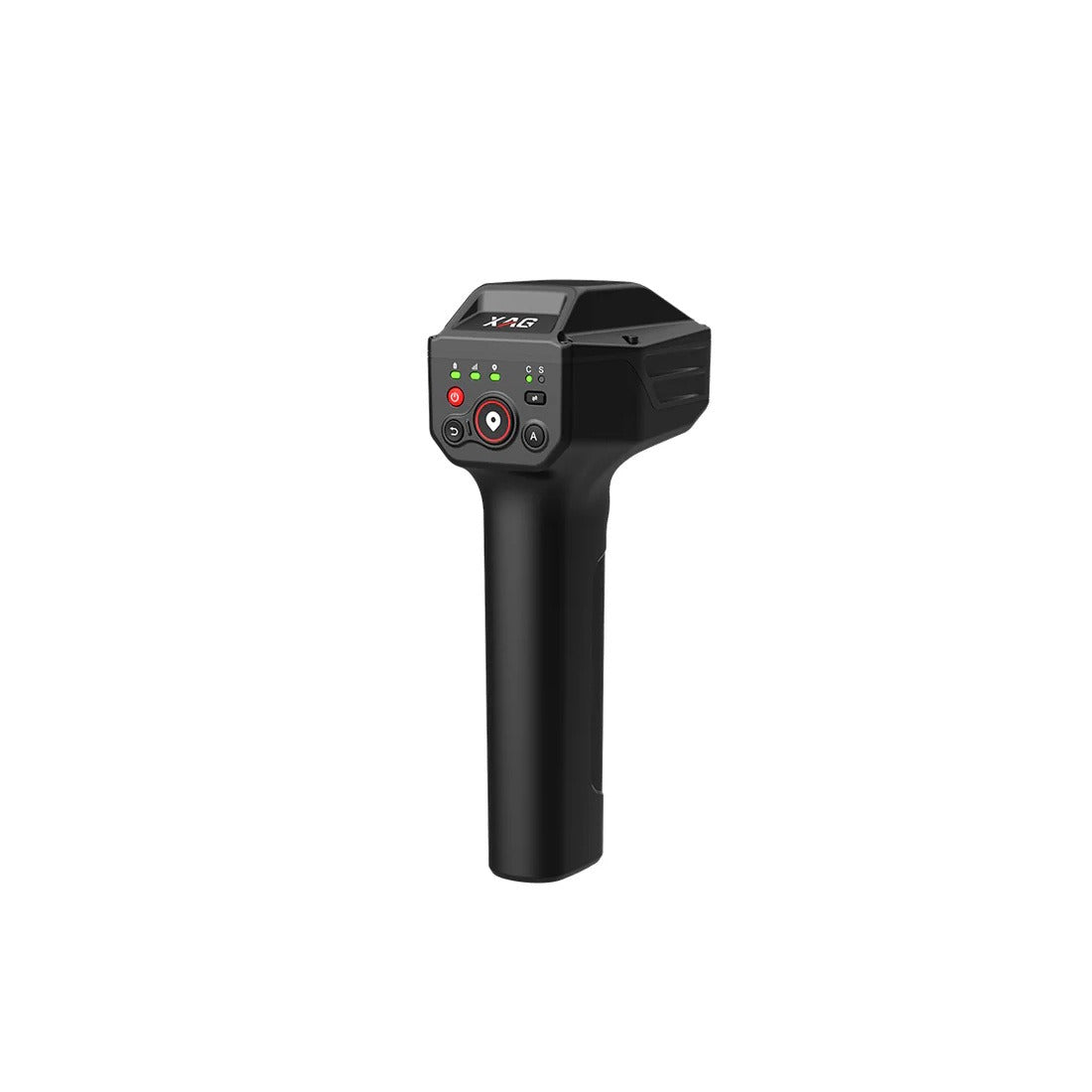

The XAG XRTK7 Mobile Station is a portable, multi-role RTK positioning device built for precision agriculture and survey workflows within the XAG ecosystem. Weighing just 0.55 kg with a compact 222 × 112 × 75 mm body, the XRTK7 can be deployed as a handheld point-marking tool for walking field boundaries, marking obstacles, and defining non-spraying zones — or mounted to a standard 1/4" tripod as a temporary portable RTK reference station. This flexibility makes it equally valuable for mission planning in the field and for providing a precision positioning reference in areas without fixed infrastructure.
The XRTK7 supports multiple high-precision positioning methods including Network RTK, PPP satellite-based positioning, and CORS, and uses an integrated 4G module with a SIM card slot for network connectivity alongside XAG's XLink communication system for in-ecosystem relaying. It is configured and managed through the XAG One mobile app via Bluetooth pairing or QR code, which also handles firmware updates and device onboarding. Wi-Fi connectivity spans the 2.4 GHz and 5.8 GHz bands, with 4G LTE support across a broad set of international bands for flexible field deployment worldwide.
Características
Especificaciones
| Brand | XAG |
|---|---|
| Model | XRTK7 Mobile Station |
| Part Number | 09-016-00083 |
| Dimensions | 222 × 112 × 75 mm |
| Weight | 0.55 kg |
| Wi-Fi | 2.4 GHz and 5.8 GHz (FCC/CE regional variants) |
| 2G (CE) | GSM 900, DCS 1800 |
| 3G (CE) | WCDMA Bands I, V, VIII |
| 4G LTE Bands | 1, 3, 5, 7, 8, 20, 28 |
| Tripod Thread | 1/4" UNC |
| Positioning Methods | Network RTK, PPP, CORS |
| App Management | XAG One (iOS/Android, via Bluetooth or QR code) |
Sectores
Preguntas frecuentes
The XAG XRTK7 is a portable RTK positioning device designed for use within the XAG precision agriculture ecosystem. It is used for walking and recording field boundaries, marking obstacles and no-spray zones during mission planning, and as a temporary portable RTK reference station to support high-accuracy positioning for XAG drones and tools in the field.
The XRTK7 supports Network RTK, PPP (Precise Point Positioning) satellite-based positioning, and CORS (Continuously Operating Reference Station) workflows. It uses an integrated 4G module for network connectivity and XAG's XLink communication protocol for in-ecosystem relaying, providing flexible high-precision positioning across different connectivity environments.
The XRTK7 is primarily used in precision agriculture and agri-tech operations, supporting drone mission planning, field mapping, and geofencing workflows. Agricultural service providers, farm operators, and research teams working with XAG drone platforms benefit most from its portable RTK capabilities.
Yes, Robotix Market ships the XAG XRTK7 worldwide. The product is covered by the manufacturer's warranty as provided by XAG. Regional radio variants and applicable SIM compatibility can be confirmed at the time of purchase.
You can purchase the XAG XRTK7 or request a quotation through Robotix Market's website or by contacting our team directly. We can advise on ecosystem compatibility, regional connectivity requirements, and bundle options with other XAG equipment.
