- 11 DOF bionic architecture 6 active motor-actuated joints and 5 passive joints deliver 11 total degrees of freedom, covering full thumb opposition and independent finger flexion/extension.
- 383 g ultra-lightweight design Weighs only 383 g at 160 mm length—approximately the scale of an adult female hand—minimising distal arm inertia for better arm dynamics and acceleration.
- 20 kg maximum load capacity Achieves a maximum load of 20 kg and a grip force of at least 50 N, enabling heavy-duty manipulation from a compact, lightweight form factor.
- Multi-protocol communication Supports RS-485 and CANfd communication interfaces with a maximum update rate of 1 kHz for high-speed real-time control.
- ROS and SDK compatibility SDK supports Python and C on Linux, Windows, and ROS platforms, with OTA online upgrade support and customizable gesture programming for rapid dexterous application development.
- Smart protection suite Onboard current protection, stall protection, high-temperature protection, and anti-collision protection for reliable, safe operation in research and deployment environments.
Description

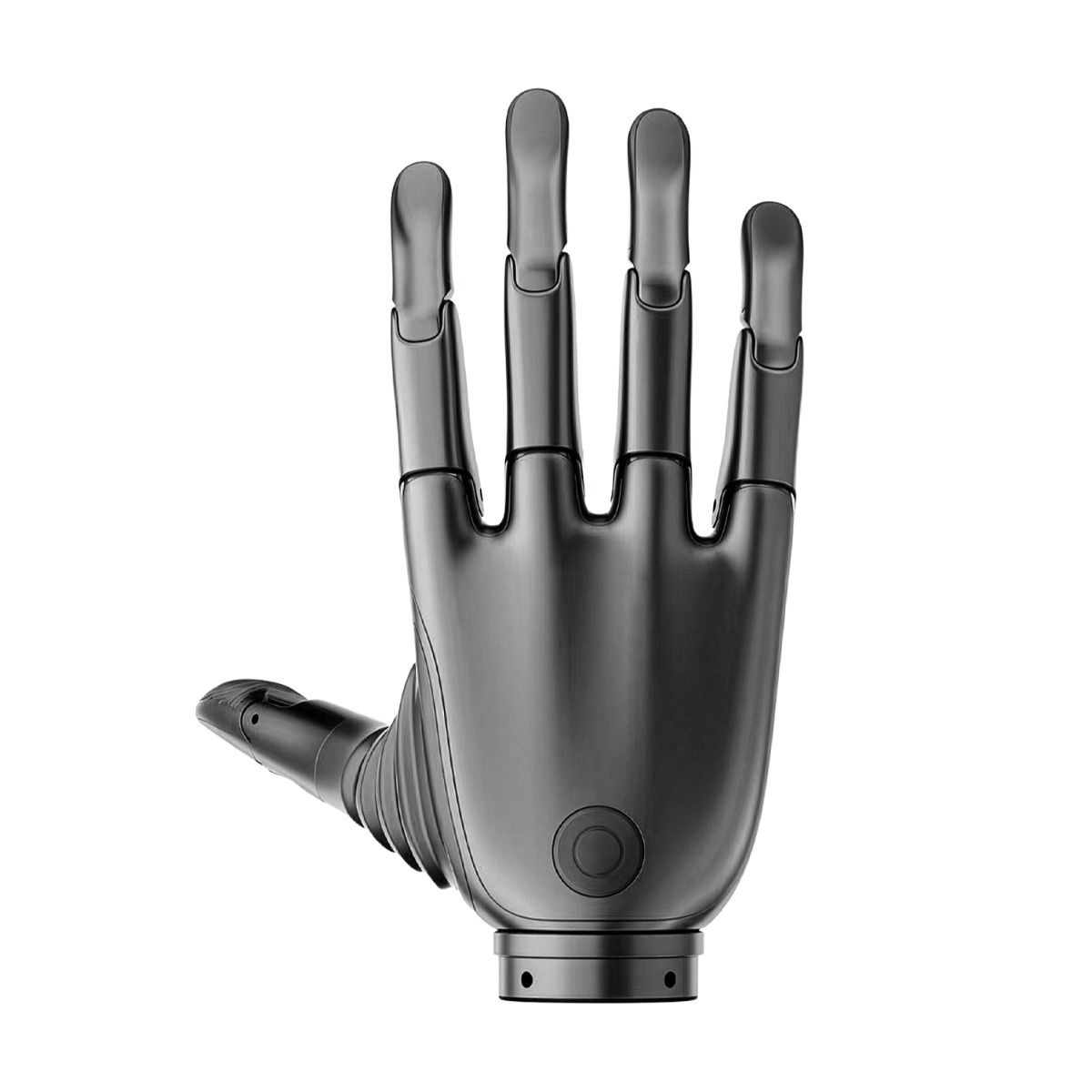

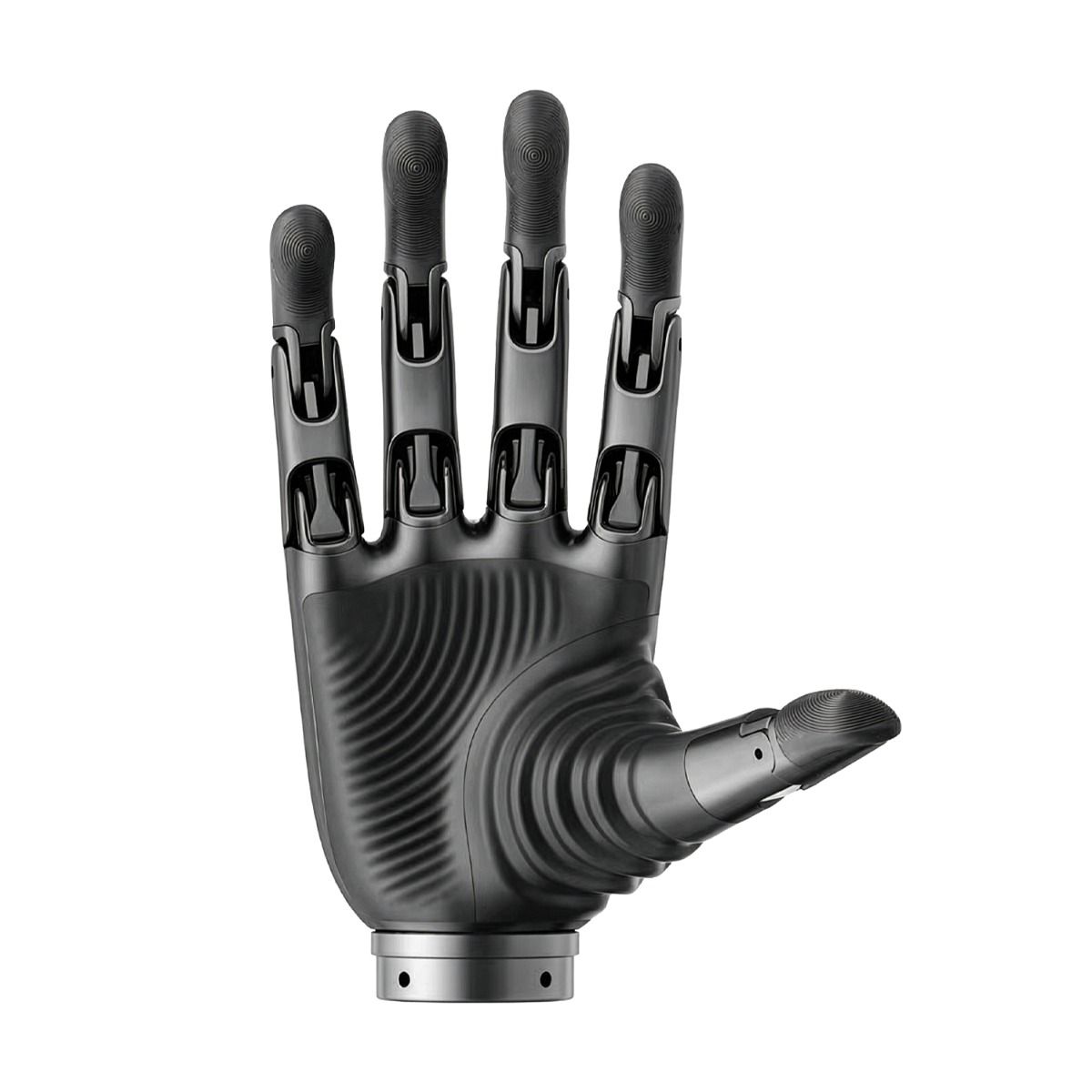

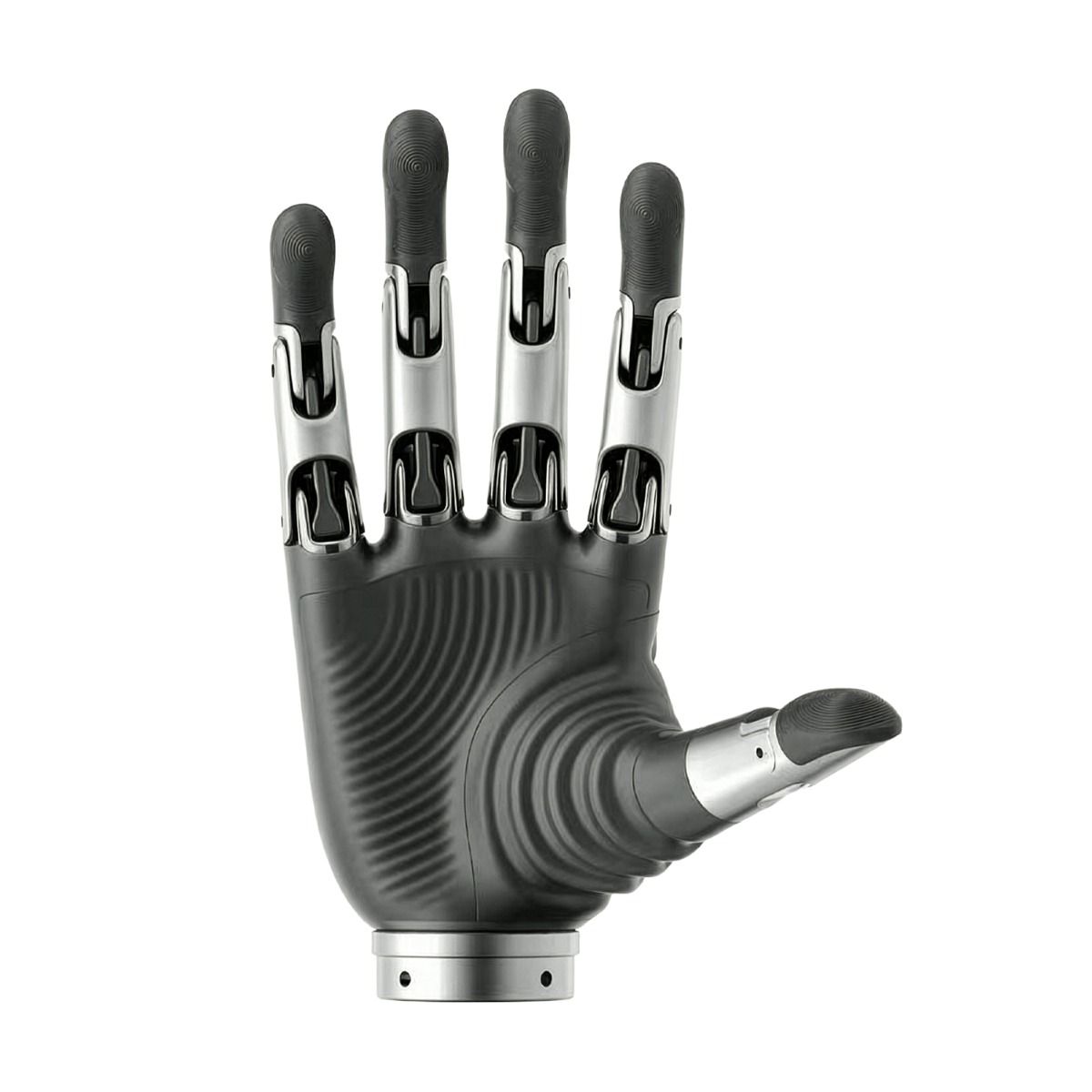

The BrainCo Revo 2 Basic Left Dexterous Hand (XRL) is an intelligent bionic robotic hand engineered for humanoid robots, mobile manipulators, and research platforms that require capable, lightweight end-effector hardware. Built on the technology foundation of BrainCo's prosthetic hand program and the earlier Revo 1, the Revo 2 achieves 11 total degrees of freedom—6 of them motor-actuated—through 6 onboard motors. At 383 g and 160 mm in length, it delivers an extreme load capacity of up to 20 kg and a grip force of at least 50 N while remaining compact and lightweight enough for distal mounting on a humanoid arm without compromising arm dynamics.
The XRL supports rapid secondary development through SDK compatibility with Python and C on Linux, Windows, and ROS, and accepts multiple communication protocols—RS-485, CANfd, and (in Pro/Touch variants) EtherCAT—at up to 1 kHz update rates. Customizable gestures, position-velocity-current feedback control, stall protection, high-temperature protection, anti-collision protection, and OTA firmware updates make the Revo 2 Basic a production-ready platform for research and commercial dexterous manipulation applications. The left-hand (XRL) model is designed for left-wrist mounting and pairs with the XRR right-hand for full bilateral humanoid capability.
Features
Specs
| Brand | BrainCo |
|---|---|
| Model | Revo 2 Basic Left (XRL) |
| Total Degrees of Freedom | 11 (6 active) |
| Weight | 383 g |

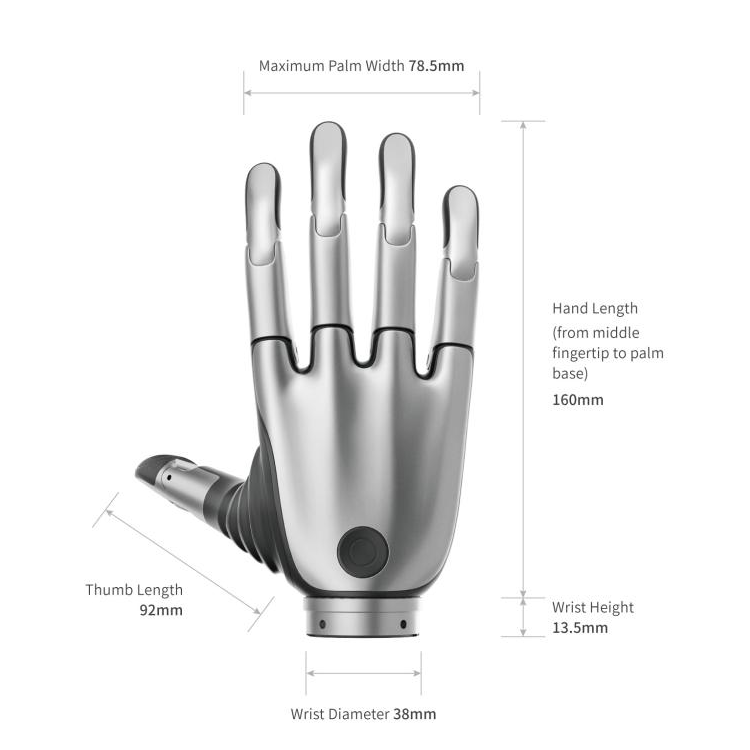

| Hand Length | 160 mm |
| Grip Strength (five fingers) | ≥50 N |
| Pinch Strength | ≥15 N |
| Maximum Load | ≥20 kg |
| Flexion/Extension Speed | ≤0.65 s |
| Max Opening/Closing Distance | 100 mm (thumb to index) |
| Repetitive Control Precision | 0.1° |
| Communication Interfaces | RS-485, CANfd |
| Supply Voltage | 12–28 V |
| Operating Temperature | -10°C to 40°C / 90% RH |
Industries
Frequently Asked Questions
The XRL is a left-handed bionic dexterous robotic hand with 11 degrees of freedom (6 active), designed for humanoid robots, mobile manipulators, and teleoperation systems that require a lightweight, capable end-effector for grasping and manipulation tasks.
The combination of 11 DOF (including active thumb opposition), a 383 g weight achieving 20 kg maximum load, and multi-protocol communication at up to 1 kHz gives the Revo 2 Basic an unusually high capability-to-weight ratio for a bionic robotic hand.
It is used primarily in robotics research and embodied AI development, advanced manufacturing automation, and healthcare and rehabilitation technology where dexterous, human-scale robotic hands are needed.
Yes, Robotix Market ships worldwide. The Revo 2 Basic Left Hand is covered by the manufacturer's warranty; no on-site installation or service is included.
You can purchase the XRL directly on the Robotix Market website, or submit a quote request if you need a matched pair (XRL + XRR) or quantity pricing for your team.
BrainCo Revo 2 Basic Left Dexterous Bionic Hand (XRL)
- Regular price
- 19,042.00 SR
- Sale price
